EP15301T 1.5-inch Round TFT LCD Display 360x360 QSPI/SPI

🔍 Click image to enlarge

EP15301T 1.5-inch Round TFT LCD Display 360x360 QSPI/SPI

Name: EP15301T 1.5-inch Round TFT LCD Display 360x360 QSPI/SPI
Brand: EYA Display
SKU: EP15301T
Availability: InStock

1.5" 360x360 QSPI/SPI

EP15301T(圆形) is a 1.5-inch display with a resolution of 360x360, a QSPI interface and an ST77916 driver, viewed at Full viewing angle.

Outline 40.46 (W) × 41.82 (H) × 2.14 (T) mm; operating temperature -20~70 ℃; brightness 380 cd/m².

This model has no touch panel.

Model	EP15301T
Size	1.5 inch
Resolution	360x360
Interface	QSPI
Driver IC	ST77916
Viewing angle	Full viewing angle
Touch	No
Pin count	14pin
Pin pitch	0.5mm
Connection	Connector

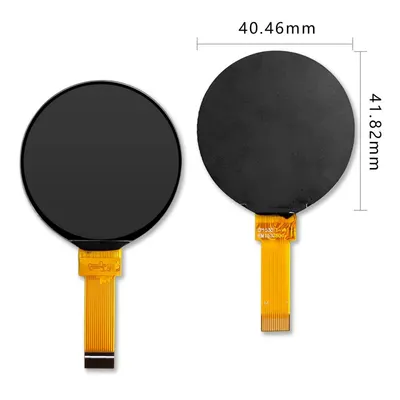

Outline (W×H×T)	40.46 (W) × 41.82 (H) × 2.14 (T) mm

📄 Request documents Quote / Sample

Category: TFT LCD Displays & Modules

Specifications

Detailed specifications

What these numbers mean

Brightness 380 cd/m²Clearly readable under normal indoor lighting; choose a high-brightness model for direct sunlight or semi-outdoor use.
Interface QSPIFew pins and simple routing, suited to small and medium sizes with limited host resources; use RGB / MIPI for high-resolution larger panels.
Resolution 360x360Good for icons, gauges and simple UI; not intended for text-dense or multi-column layouts.
Viewing angle Full viewing angleColours hold up from above, below and both sides — useful when several people view it or the mounting angle varies.
Operating temperature -20~70 ℃Covers most indoor and general industrial environments; choose a wide-temperature model beyond that.
TouchThis model has no touch panel; choose a touch model or request customisation if you need touch.

Basic description

Item	Specification
Product name	1.53-inch IPS full-viewing-angle round display
Display mode	transmissive
Display format	360 × RGB × 360 dot matrix
Data format	RGB565 / RGB666
Interface type	QSPI
Direction	Full viewing angle
Driver IC	ST77916 (Sitronix, Taiwan)

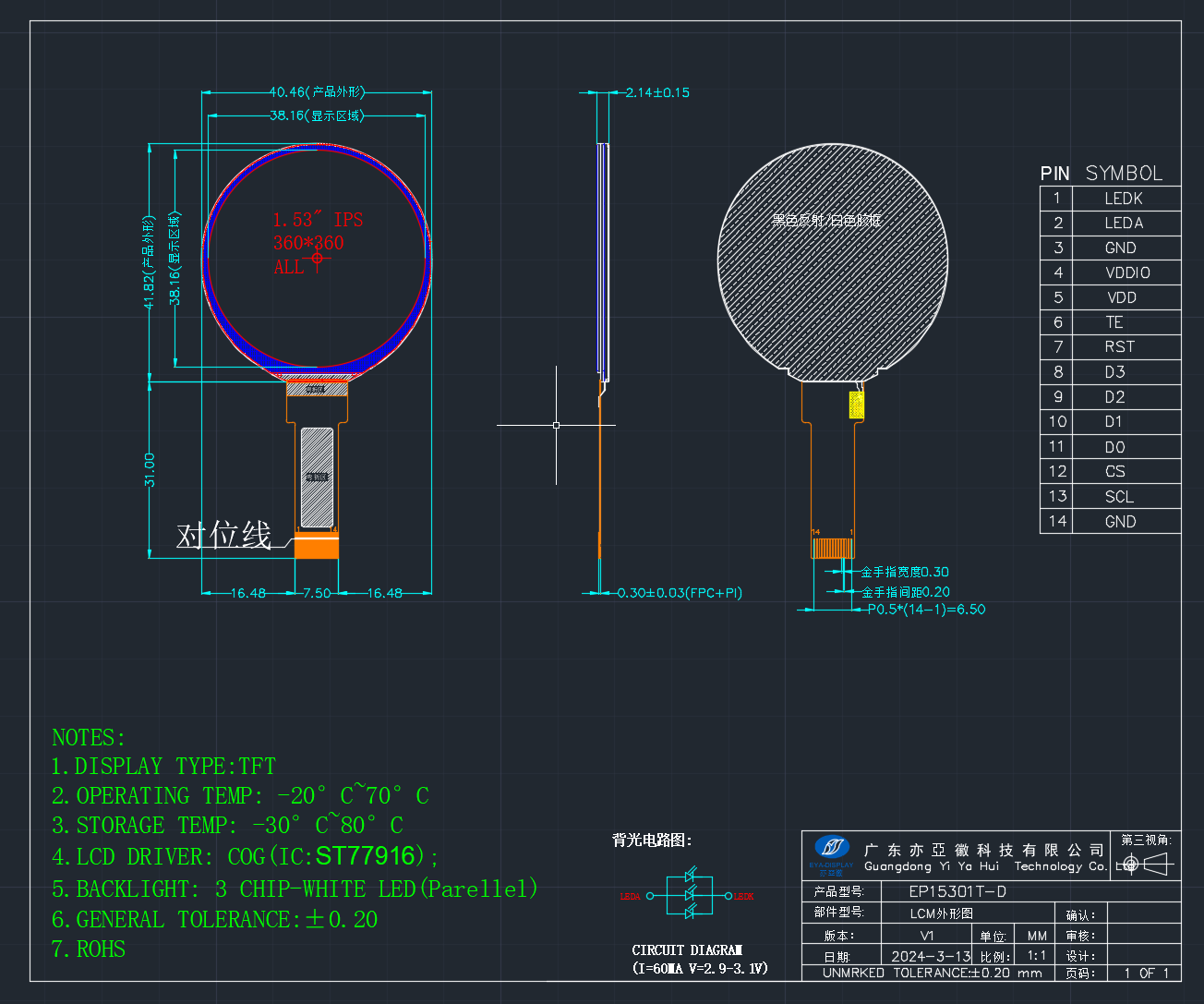

Mechanical specifications

Item	Specification
Outline dimensions	40.46 (W) × 41.82 (H) × 2.14 (T) mm
Resolution	360 × 360 dots
显示直径	38.16 mm
Pixel size	0.106 (W) × 0.106 (H) mm

Absolute maximum ratings

Item	Symbol	Min	Max	Unit	Remark
IO voltage (IOVCC) V	1.8~3.3 V
Analog voltage (VCC) V	2.8~3.3 V
Operating temperature TOPR	-20~70 ℃
Storage temperature TSTR	-30~80 ℃

Brightness & power

Item	Specification
LED backlight forward voltage VLED	2.9~3.1 (typ. 3.0) V
LED backlight current ILED	60 mA
Display surface luminance LS	380 cd/m²
LED backlight uniformity LD	80 %
Total display power consumption PLCD	0.195 W

Pin definition

1 LEDK

2 LEDA

3 GND

4 VDDIO

5 VDD

6 TE

7 RST

8 D3

9 D2

10 D1

11 D0

12 CS

13 SCL

14 GND

Response time & contrast

Item	Specification
Response time Tr+Tf θ=0°	35~45 ms
Contrast ratio CR θ=0°	1000

Viewing angle

Item	Specification
12 o'clock CR≥10	80~85°
9 o'clock CR≥10	80~85°

Reliability test

No.	Test item	Test conditions
High temperature storage	80 °C × 120 h. After the test, the tested LCD samples must be left in a normal indoor temperature and humidity environment for 2–4 hours before functional and visual inspection.
Low temperature storage	-30℃*120 hours
High temperature / high humidity storage	60℃90%RH120Hrs
High temperature operation	70℃*72 hours
Low temperature operation	-20℃*72 hours
Thermal cycling storage	-20 °C (30 min) ~ 25 °C (5 min) ~ 70 °C (30 min), 10 cycles

Highlights

Highlights & Applications

Key features

Surface luminance 380 cd/m², clearly readable in normal indoor lighting
Full viewing angle — colours hold up from any direction, giving more freedom in mounting angle
Driven by ST77916, a well-established part with readily available documentation
Supports QSPI interface, selectable to match host resources
Operating temperature -20~70 ℃, covering most indoor and general industrial environments
Resolution 360x360, sufficient for gauges and list-style interfaces

Typical applications

Small display UI for wearables and portable instruments
Compact appliance panels and decorative front panels
Hosts with limited pins and resources that must still drive a display
Applications without touch, favouring simple construction and controlled cost

Not sure whether it fits? Tell us your environment and host platform and an engineer will confirm.

Ordering & Support

Lead time	Standard models ship in 3–7 days from stock; custom models take 7–15 days for samples; volume orders are scheduled on confirmation
MOQ	Standard models support small trial batches; custom projects depend on tooling and material commitment
Samples	Samples available for standard models; custom samples take 7–15 days
Customisation	Size, resolution, luminance, interface, touch (capacitive / resistive), FPC length and pin definition, construction (posts / iron frame), cover glass and bonding, firmware and UI
Certification	National High-Tech Enterprise · ISO9001 certified · CE / FCC / RoHS reports available on request
Technical support	Schematic review, timing confirmation, driver debugging and UI development support; datasheets (PDF) and driver code published on most product pages, with schematics included in the example projects
Packaging	Custom blister trays with foam separators between trays; units per carton are determined by the size and shape of the product. Thick foam protects every side inside the carton, suitable for long-distance transport and repeated handling.
Warranty	One-year warranty to industry standard. Our quality and after-sales team analyses every defective unit: where the cause is ours, we correct it in subsequent production so it does not recur.
Long-term supply	Long-term supply commitments available for industrial projects, assessed against the product lifecycle
Export	Exporting to Europe, the US, Japan, Korea and Southeast Asia; we can help arrange international logistics and export documents
